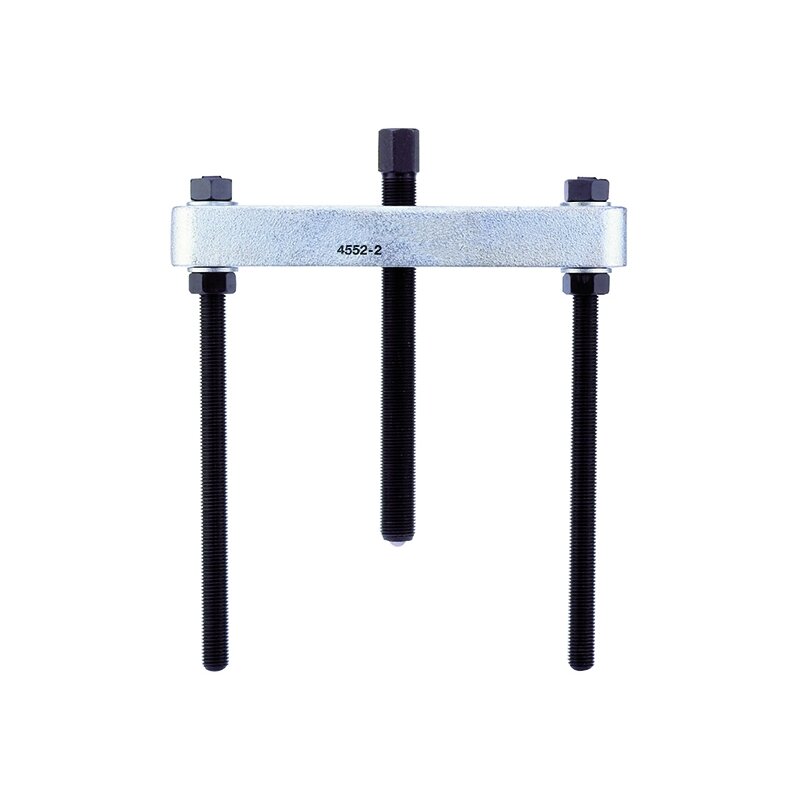

Puller for separator

• For maintenance jobs in garages and workshops
• To be used with separators series 4551
• Once separation is done, use this puller to complete the job, opening capacity/span depth in mm:
• 4552-1, Capacity 45-140 mm, length 150 mm
• 4552-2, Capacity 55-200 mm, length 210 mm
• 4552-3, Capacity 90-260 mm, length 315 mm
• 4552/B Spare body
• 4552K Spare tie rod
• 4532/S Spare spindle
• 4532-OAB/S for 4552-1 (M14 x 1.5 x 135, SW 17, 175 g)
• 4532-CD/S for 4552-2 and 4552-3 (G1/2" x 14 x 210, SW 22, 575 g)
• The sharp tapered cutting edges of separator are pressed behind the part to be removed
• Operation: The sharp tapered cutting edges of separator No. 4551 are pressed behind the part to be removed when tightening the stud nuts
• Use puller No. 4552 to withdraw separator and part from the shaft by tightening the rod nuts
